# Create pytorch dataset from hf dataset

first download hugingface dataset and then convert it pytorch dataset with augmentation, to work further

IMAGE_HEGHT = 256
IMAGE_WIDTH = 256
IN_CHANNELS = 1
OUT_CHANNELS = 1

---

source

show_hf_dataset

 show_hf_dataset (dataset:datasets.arrow_dataset.Dataset,
                  idx:Optional[int]=None, split:str='train')

Show hugging face random index

Now testing

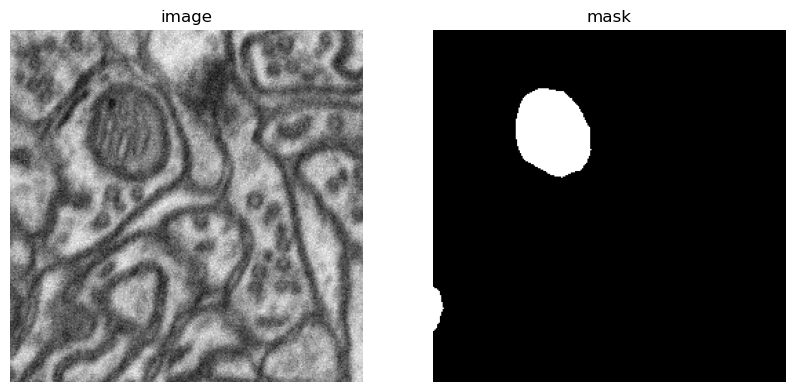

show_hf_dataset(dataset)

 dataset index will be visualized: 106

#msk_no = len(dataset['train']['label'])
#mask_max =[np.max(np.array(dataset['train']['label'][i])) for i in range(msk_no)]

def visualize_map(image, segmentation_map):
    color_seg = np.zeros((segmentation_map.shape[0], segmentation_map.shape[1], 1), dtype=np.uint8) # height, width, 3
    for label, color in id2color.items():
        color_seg[segmentation_map == label, :] = color

---

source

SegmentationDataset

 SegmentationDataset (dataset, transform)

An abstract class representing a :class:Dataset.

All datasets that represent a map from keys to data samples should subclass it. All subclasses should overwrite :meth:__getitem__, supporting fetching a data sample for a given key. Subclasses could also optionally overwrite :meth:__len__, which is expected to return the size of the dataset by many :class:~torch.utils.data.Sampler implementations and the default options of :class:~torch.utils.data.DataLoader. Subclasses could also optionally implement :meth:__getitems__, for speedup batched samples loading. This method accepts list of indices of samples of batch and returns list of samples.

.. note:: :class:~torch.utils.data.DataLoader by default constructs a index sampler that yields integral indices. To make it work with a map-style dataset with non-integral indices/keys, a custom sampler must be provided.

	Details
dataset
transform	Transformations

MEAN =0
STD = 1
train_transform = A.Compose([
    A.Resize(width=IMAGE_WIDTH, height=IMAGE_HEGHT),
    A.HorizontalFlip(p=0.5),
    A.Normalize(mean=MEAN, std=STD),

])

val_transform = A.Compose([
    A.Resize(width=IMAGE_WIDTH, height=IMAGE_HEGHT),
    A.Normalize(mean=MEAN, std=STD),

])

#ds_test = load_dataset("EduardoPacheco/FoodSeg103")

#msk=ds_test['train']['label'][0]

#np.array(msk).shape

#msk

id2label = {0: 'background', 1: 'Pin'}

pixel_values, target, original_image, original_segmentation_map = train_dataset[3]
print(pixel_values.shape)
print(target.shape)

torch.Size([256, 256, 1])
torch.Size([1, 256, 256])
torch.Size([256, 256])

def collate_fn(inputs):
    batch = dict()
    batch["pixel_values"] = torch.stack([i[0] for i in inputs], dim=0)
    batch["labels"] = torch.stack([i[1] for i in inputs], dim=0)
    batch["original_images"] = [i[2] for i in inputs]
    batch["original_segmentation_maps"] = [i[3] for i in inputs]

    return batch

train_dataloader = DataLoader(train_dataset, batch_size=2, shuffle=True, collate_fn=collate_fn, num_workers=2)
val_dataloader = DataLoader(val_dataset, batch_size=2, shuffle=False, collate_fn=collate_fn, num_workers=2)

batch = next(iter(train_dataloader))
for k,v in batch.items():
  if isinstance(v,torch.Tensor):
    print(k,v.shape)

torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
torch.Size([256, 256, 1])
pixel_values torch.Size([2, 1, 256, 256])
labels torch.Size([2, 256, 256])

batch["pixel_values"].dtype, batch["labels"].dtype

(torch.float32, torch.int64)

unnormalized_image = batch["pixel_values"][0].numpy() * np.array(STD)+ np.array(MEAN)
unnormalized_image = (unnormalized_image * 255).astype(np.uint8)
print(unnormalized_image.shape)
unnormalized_image = np.moveaxis(unnormalized_image, 0, -1)
print(unnormalized_image.shape)
unnormalized_image = Image.fromarray(unnormalized_image[:,:,0])
unnormalized_image

(1, 256, 256)
(256, 256, 1)

---

source

UNetSmall

 UNetSmall (in_channels, out_channels)

Base class for all neural network modules.

Your models should also subclass this class.

Modules can also contain other Modules, allowing to nest them in a tree structure. You can assign the submodules as regular attributes::

import torch.nn as nn
import torch.nn.functional as F

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Conv2d(1, 20, 5)
        self.conv2 = nn.Conv2d(20, 20, 5)

    def forward(self, x):
        x = F.relu(self.conv1(x))
        return F.relu(self.conv2(x))

Submodules assigned in this way will be registered, and will have their parameters converted too when you call :meth:to, etc.

.. note:: As per the example above, an __init__() call to the parent class must be made before assignment on the child.

:ivar training: Boolean represents whether this module is in training or evaluation mode. :vartype training: bool

---

source

TverskyFocalLoss

 TverskyFocalLoss (alpha=0.7, beta=0.3, gamma=2.0, epsilon=1e-05)

Base class for all neural network modules.

Your models should also subclass this class.

Modules can also contain other Modules, allowing to nest them in a tree structure. You can assign the submodules as regular attributes::

import torch.nn as nn
import torch.nn.functional as F

class Model(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Conv2d(1, 20, 5)
        self.conv2 = nn.Conv2d(20, 20, 5)

    def forward(self, x):
        x = F.relu(self.conv1(x))
        return F.relu(self.conv2(x))

Submodules assigned in this way will be registered, and will have their parameters converted too when you call :meth:to, etc.

.. note:: As per the example above, an __init__() call to the parent class must be made before assignment on the child.

:ivar training: Boolean represents whether this module is in training or evaluation mode. :vartype training: bool

# creating dataset
train_dataset = SegmentationDataset(dataset["train"], transform=train_transform)
val_dataset = SegmentationDataset(dataset["test"], transform=val_transform)

# now dataloader
train_dataloader = DataLoader(train_dataset, batch_size=2, shuffle=True, collate_fn=collate_fn, num_workers=2)
val_dataloader = DataLoader(val_dataset, batch_size=2, shuffle=False, collate_fn=collate_fn, num_workers=2)

def save_model(model, save_path):
    Path(save_path).parent.mkdir(exist_ok=True, parents=True)
    torch.save(model.state_dict(), save_path)

---

source

train

 train (train_dataloader:torch.utils.data.dataloader.DataLoader,
        val_dataloader:torch.utils.data.dataloader.DataLoader,
        optimizer:torch.optim.optimizer.Optimizer,
        model:torch.nn.modules.module.Module,
        criterion:torch.nn.modules.module.Module, device:torch.device,
        epochs:int, save_path:str)

if torch.cuda.is_available():
    device = torch.device("cuda")
else:
    device = torch.device("cpu")

print(f'Using device: {device}')

Using device: cuda

# creating dataset
train_dataset = SegmentationDataset(dataset["train"], transform=train_transform)
val_dataset = SegmentationDataset(dataset["test"], transform=val_transform)

# now dataloader
train_dataloader = DataLoader(train_dataset, batch_size=2, shuffle=True, collate_fn=collate_fn, num_workers=2)
val_dataloader = DataLoader(val_dataset, batch_size=2, shuffle=False, collate_fn=collate_fn, num_workers=2)

model = UNetSmall(IN_CHANNELS, OUT_CHANNELS).to(device)
criterion = TverskyFocalLoss(alpha=0.7, beta=0.3, gamma=2.0)
optimizer = torch.optim.AdamW(model.parameters(), lr=0.001, weight_decay=0.0001)

for name, param in model.named_parameters():
    print(name)

encoder.0.weight
encoder.0.bias
encoder.2.weight
encoder.2.bias
middle.0.weight
middle.0.bias
decoder.0.weight
decoder.0.bias
decoder.2.weight
decoder.2.bias
decoder.4.weight
decoder.4.bias

batch = next(iter(train_dataloader))

batch['labels'].shape

torch.Size([2, 1, 256, 256])

logits=model(batch['pixel_values'].to(device))
logits.shape
criterion(logits, batch['labels'].to(device))

tensor(0.9611, device='cuda:0', grad_fn=<MeanBackward0>)

train(
    train_dataloader=train_dataloader,
    val_dataloader=val_dataloader,
    optimizer=optimizer,
    criterion=criterion,
    model=model,
    device=device,
    epochs=1,
    save_path='model.pth'


)

epoch: 1/1
Epoch [1/1], Loss: 0.0003, Learning Rate: 0.00001000
Epoch [1/1], Loss: 0.0003, Val Loss: 0.0003

def load_model(model, checkpoint_path):
    model.load_state_dict(torch.load(checkpoint_path))
    model.eval()  # Set the model to evaluation mode
    return model

checkpoint_path = 'model.pth'

loaded_model = load_model(UNetSmall(IN_CHANNELS, OUT_CHANNELS), checkpoint_path)
loaded_model = loaded_model.to(device)

inf_img = val_transform(image=np.array(dataset['test']['image'][0]))
inf_img['image'].shape

(256, 256)

new_img=(inf_img['image'])

inp_img_infr = np.expand_dims(np.expand_dims(new_img,axis=-1),0).shape

loaded_model(torch.tensor(np.expand_dims(np.expand_dims(new_img,axis=-1),0)).to(device))

RuntimeError: Given groups=1, weight of size [16, 1, 3, 3], expected input[1, 256, 256, 1] to have 1 channels, but got 256 channels instead

inp_img_infr=inp_img_infr.to(device)

AttributeError: 'tuple' object has no attribute 'to'
